Overview

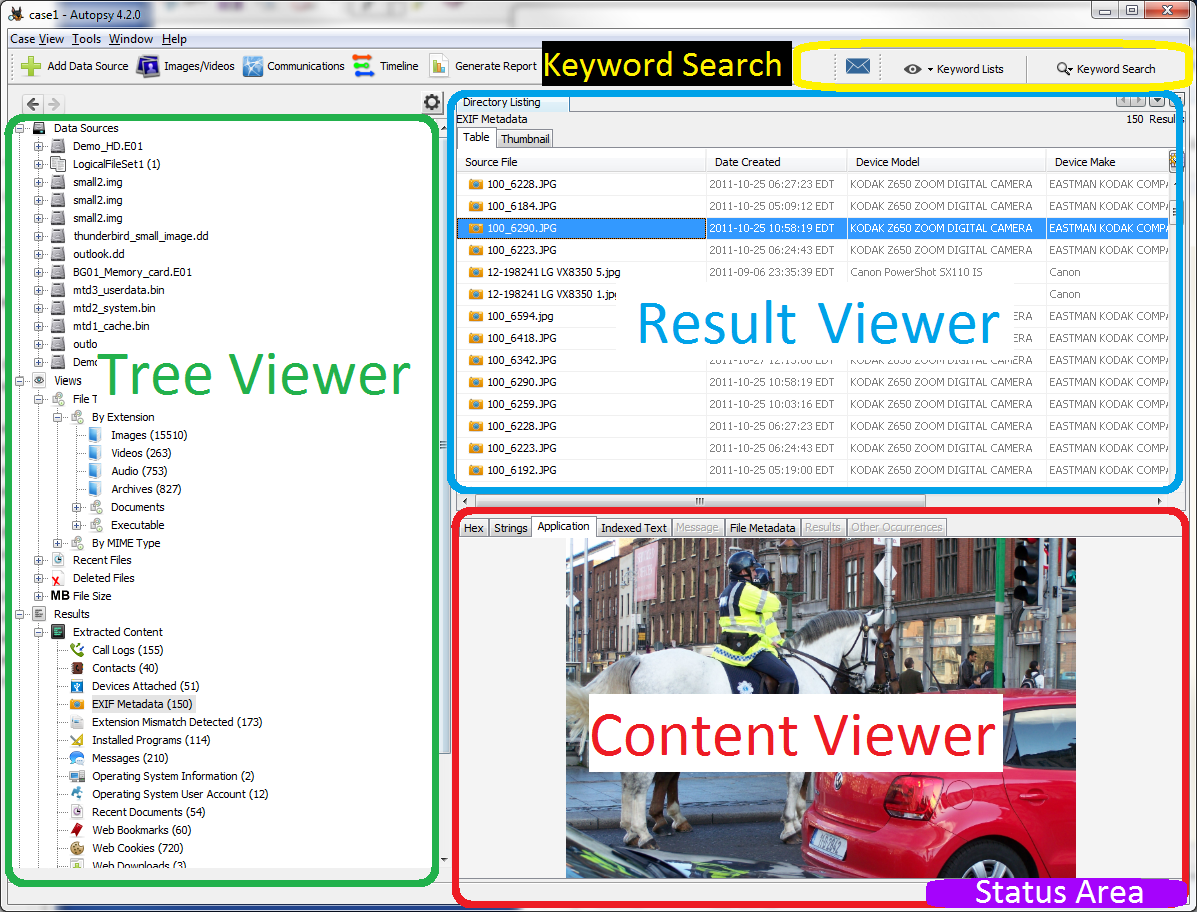

The major areas in the Autopsy User Interface (UI) are:

Tree Viewer, shown outlined in green below
Result Viewer, shown outlined in blue below
Content Viewer, shown outlined in red below
Keyword Search, shown outlined in yellow below
Status Area, shown in solid purple below

You can customize how data is shown in the UI through the View Options panel.

Tree Viewer

The tree on the left-hand side is where you can browse the files in the image and find saved results from automated procedures (ingest). The tree has five main areas:

Data Sources: This shows the directory tree hierarchy of the file systems in the images. You can navigate to a specific file or directory here. Each data source added is represented as a drive. If you add a data source multiple times, it shows up multiple times.
Views: Specific types of files from the data sources are shown here, aggregated by type or other properties. Files here can come from more than one data source. Look here for files of a specific type or property.
Results: Where you can see the results from the background ingest tasks and you can see your previous search results. Go here to see what was found by the ingest modules and to find your previous search results.
Tags: Where files and results that have been tagged are shown
Reports: References to reports that you have generated or that ingest modules have created show up here

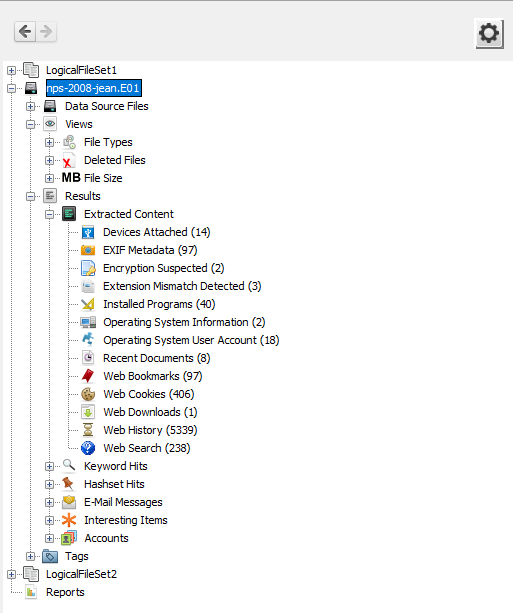

You can also use the "Group by data source" option available through the View Options to move the views, results, and tags subtrees under their corresponding data sources. This can be helpful on very large cases to reduce the size of each node.

Data Sources

The Data Sources section shows each data source that has been added to the case, in order added (top one is first). Right clicking on the various nodes in the Data Sources section of the tree will allow you to get more options for each data source and its contents.

Unallocated space is chunks of the file system that is currently not being used for anything. Unallocated space can store deleted files and other interesting artifacts. On the actual image, Unallocated space is stored in blocks with distinct locations on the system. However, because of the way various carving tools work, it is more ideal to feed them a single, large unallocated file. Autopsy provides access to both methods of looking at unallocated space.

Individual blocks in a volume There is a folder named "Unalloc". This folder contains all the individual unallocated blocks as the image is storing them. You can right click and extract them the same way you can extract any other type of file in the Directory Tree.
Single files Right click on a volume and select "Extract Unallocated Space as Single File" to concatenate all the unallocated files in the volume into a single, continuous file. (If desired, you can right click on an image, and select "Extract Unallocated Space to Single Files" which will do the same thing, but once for each volume in the image).

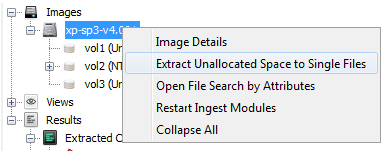

An example of the single file extraction option is shown below.

Views

Views filter all the files in the case by some external property of the file, not by any internal analysis of the file.

File Type Sorts files by file extension or MIME type, and shows them in the appropriate group. For example, .mp3 and .wav both end up in the "Audio" group.
Recent Files Displays files that are accessed within the last seven days the user had the device.
Deleted Files Displays files that have been deleted but the names have been recovered.
File Size Sorts files based upon size. This can give you an idea where to look for files you are interested in.

Results

Extracted Content: Many ingest modules will place results here; EXIF data, GPS locations, or Web History for example
Keyword Hits: Keyword search hits show up here
Hashset Hits: Hashset hits show up here
E-Mail Messages: Email messages show up here
Interesting Items: Things deemed interesting show up here
Accounts: Credit card accounts show up here
Tags: Any item you tag shows up here so you can find it again easily

Reports

Reports can be added by Ingest Modules or created using the Reporting tool.

Result Viewer

More...

The Result Viewer windows are in the upper right area of the interface and display the results from selecting something in the tree. You will have the option to display the results in a variety of formats.

Right Click Functions

Viewers in Result Viewers have certain right-click functions built-in into them that can be accessed when a node a certain type is selected (a file, directory or a result). Here are some examples that you may see:

Open File in External Viewer: Opens the selected file in an "external" application as defined by the local OS or through the External Viewer tab on the Options menu. For example, HTML files may be opened by IE or Firefox, depending on what the local system is configured to use.
View in New Window: Opens the content in a new internal Content Viewer (instead of in the default location in the lower right).
Extract: Make a local copy of the file or directory for further analysis.
Search for files with the same MD5 Hash: Searches the entire file-system for any files with the same MD5 Hash as the one selected.

Thumbnail Result Viewers

Thumbnail Results Viewer displays the data catalog as a table of thumbnail images in adjustable sizes. This viewer only supports picture files (Currently, only supports JPG, GIF, and PNG formats). Click the Thumbnail tab to select this view. Note that for a large number of images in a directory selected in the Data Explorer, or for a View selected that contains a large number of images, it might take a while to populate this view for the first time before the images are cached.

Example

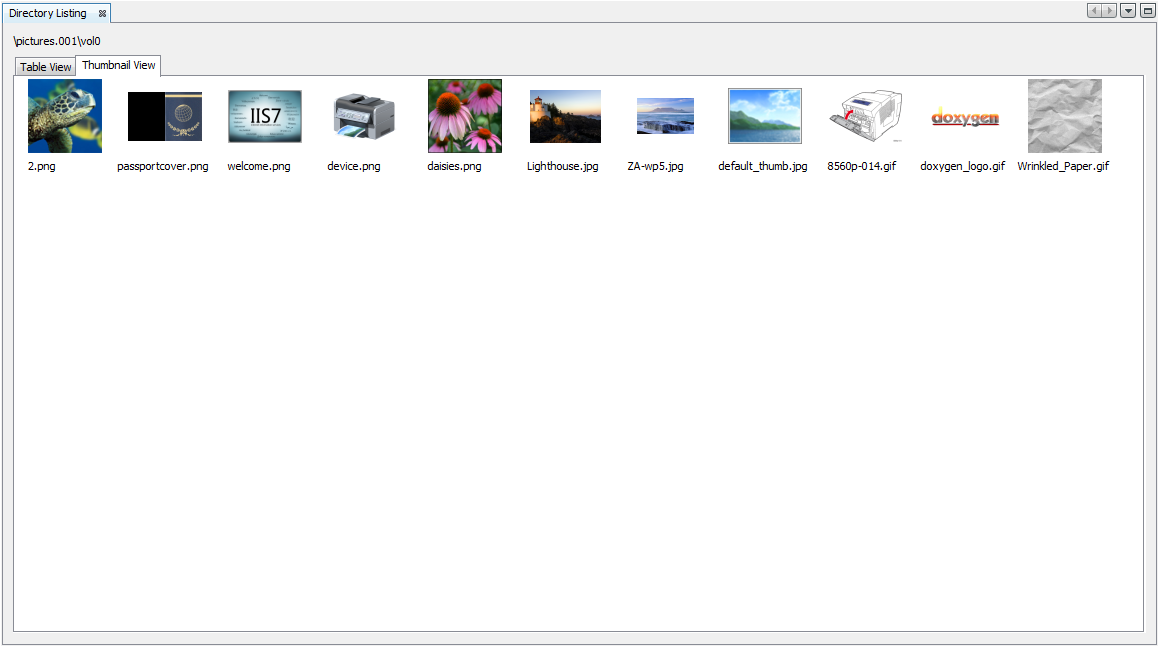

Below is an example of "Thumbnail Results Viewer" window:

Table Result Viewers

Table Results Viewer (Directory Listing) displays the data catalog as a table with some details (properties) of each file. The properties that it shows are: name, time (modified, changed, accessed, and created), size, flags (directory and meta), mode, user ID, group ID, metadata address, attribute address, and type (directory and meta). Click the Table Viewer tab to select this view.

The Results Viewer can be also activated for saved results and it can show a high level results grouped, or a results at a file level, depending on which node on the Directory Tree is selected to populate the Table Results Viewer.

Example

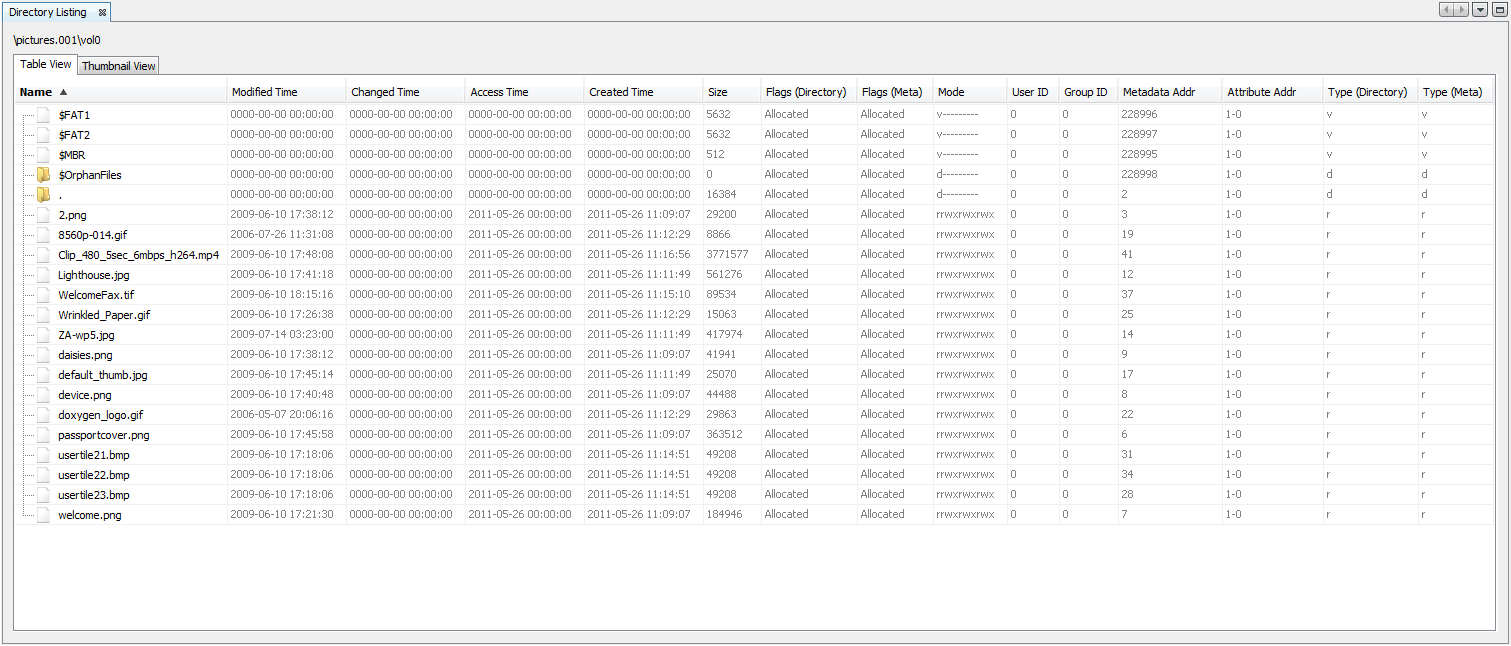

Below is an example of a "Table Results Viewer" window:

Content Viewer

The Content Viewer area is in the lower right area of the interface. This area is used to view a specific file in a variety of formats. There are different tabs for different viewers. Not all tabs support all file types, so only some of them will be enabled. To display data in this area, a file must be selected from the Result Viewer window.

The Content Viewer area is part of a plug-in framework. You can install modules that will add more viewer types. For additional information on the built-in content viewers, see the Content Viewer page.

Keyword Search

Keyword Search allows the user to search for keywords in the data source. It is covered in more detail here: Keyword Search Module

Status Area

The Status area will show progress bars while ingest is occuring. This visually indicates to the user what portion of the processing is already complete. The user can click on the progress bars to see further detail or to cancel ingest jobs.
