Overview
The PhotoRec Carver module carves files from unallocated space in the data source and sends the files found through the ingest processing chain.
This can help a reviewer discover more information about files that used to be on the device and were subsequently deleted. These are simply extra files that were found in "empty" portions of the device storage.
Using the Module
Select the checkbox in the Ingest Modules settings screen to enable the PhotoRec Carver. Ensure that "Process Unallocated Space" is selected.
Ingest Settings

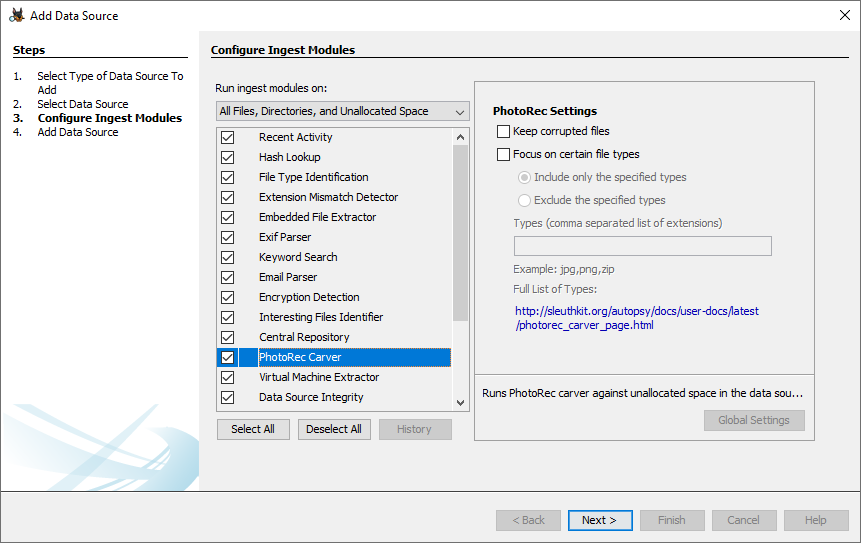

The run-time setting for this module allows you to choose whether to keep corrupted files and to include or exclude certain file types.
For the "Focus on certain file types" option, you will enter a comma separated list of file types. Depending on which option you choose, PhotoRec will either carve only files of those types or all files except those types. You will see an error if an invalid type is entered. Note that file types are case-sensitive.
The list of valid file types for the current version of Autopsy is at the bottom of this page.
Seeing Results

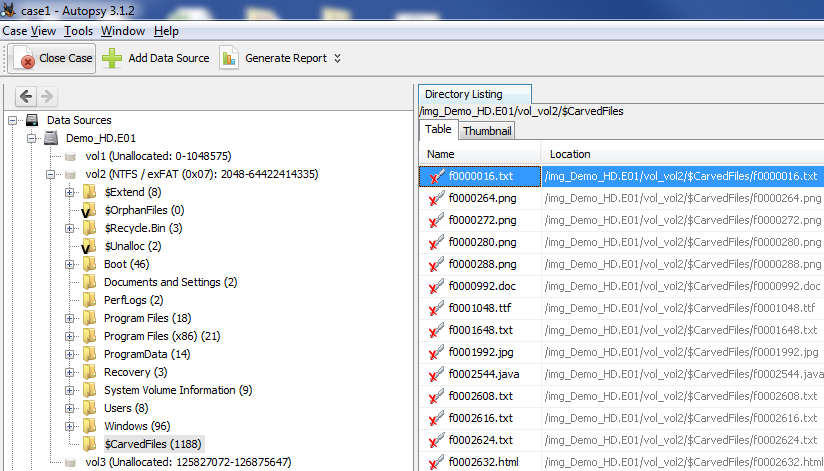

The results of carving show up on the tree under the appropriate data source with the heading "$CarvedFiles".
Applicable types also show up in the "Views", "File Types" portion of the the tree, depending upon the file type.
Custom File Signatures

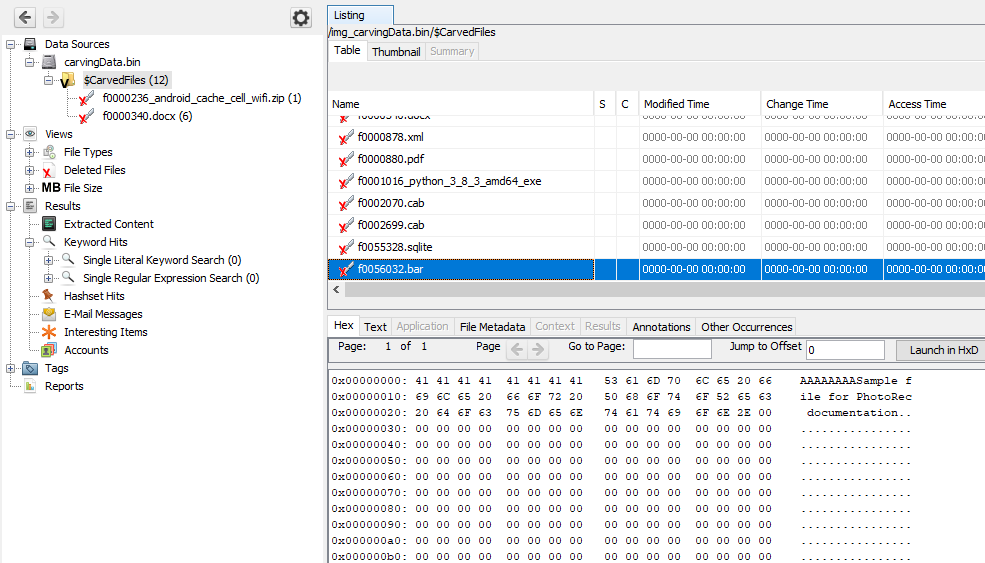

To add custom file signatures, create a file (if it does not exist) photorec.sig in the user home directory (for example - /home/john/photorec.sig, or C:\Users\john\photorec.sig). The photorec.sig file should contain one expression per line. For example, to detect a file foo.bar which has header signature - 0x4141414141414141, add an expression
bar 0 0x4141414141414141
in photorec.sig where bar is the file extension, 0 is the signature offset, and 0x4141414141414141 is the signature. Add another expression on a new line to detect another custom file based on its signature. Note that custom signatures can not be used with the "Carve only the specified types" option.
Valid File Types
The following is the list of valid file types for the version of PhotoRec currently used by Autopsy:
1cd caf dwg gp2 max pdb rw2 vfb 3dm cam dxf gp5 mb pdf rx2 vib 7z catdrawing e01 gpg mcd pds sav vmdk a cdt eCryptfs gpx mdb pf save vmg ab che edb gsm mdf pfx ses wallet abr chm elf gz mfa plist sgcta wdp acb class emf hdf mfg plr shn wee accdb comicdoc ess hdr mft plt sib wim ace cow evt hds mid png sit win ado cp_ evtx hfsp mig pnm skd wks afdesign cpi exe hm mk5 prc skp wld ahn crw exs hr9 mkv prd snag wmf aif csh ext http mlv prt snz wnk all ctg fat ibd mobi ps sp3 woff als cwk fbf icc mov psb sparseimage wpb amd d2s fbk icns mov/mdat psd spe wpd amr dad fcp ico mp3 psf spf wtv apa dar fcs idx mpg psp sqlite wv ape dat fdb ifo mpl pst sqm x3f apple DB fds imb mrw ptb steuer2014 x3i ari db fh10 indd msa ptf stl x4a arj dbf fh5 info mus pyc studio xar asf dbn fit iso mxf pzf swf xcf asl dcm fits it MYI pzh tar xfi asm ddf flac itu myo qbb tax xfs atd dex flp jks nd2 qdf tg xm au diskimage flv jpg nds qkt tib xml axp djv fm jsonlz4 nes qxd tif xpt axx dmp fob kdb njx r3d TiVo xsv bac doc fos kdbx nk2 ra torrent xv bdm dpx fp5 key nsf raf tph xz bim drw fp7 ldf oci rar tpl z2d bin ds2 freeway lit ogg raw ts zcode binvox DS_Store frm lnk one rdc ttf zip bkf dsc fs logic orf reg tx? zpr blend dss fwd lso paf res txt bmp dst gam luks pap rfp tz bpg dta gct lxo par2 riff v2i bvr dump gho lzh pcap rlv vault bz2 dv gi lzo pcb rm vdi c4d dvi gif m2ts pct rns vdj cab dvr gm* mat pcx rpm veg
